3Dfamily VMP 250 중고 비디오메타

엑스메져 2020. 1. 30. 11:31

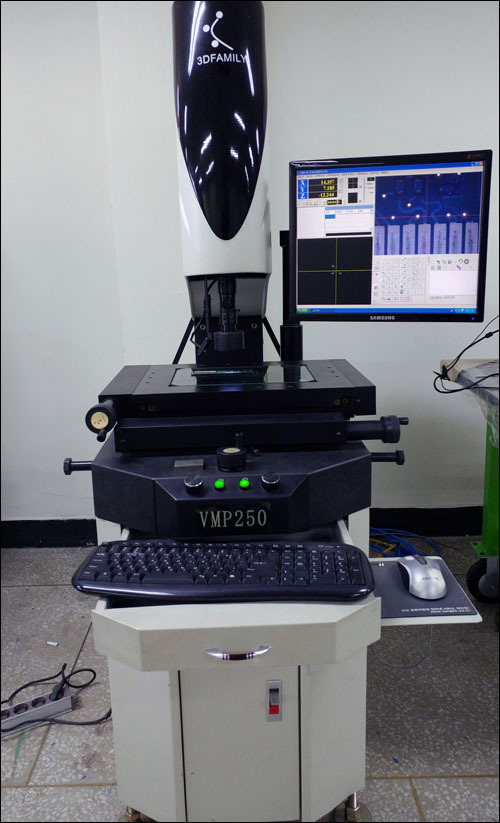

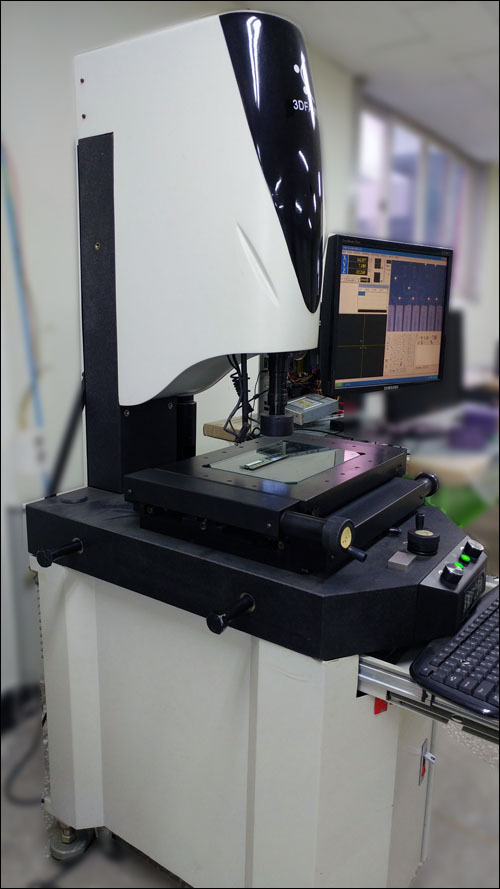

3Dfamily VMP-250 중고 비디오 메타

MODEL	VMP250
Work platform size(mm)	420 x 360
Measuring stroke(mm)	250 x 150 x 200
Machine Size(mm)	802 x 840 x 1661
Weight(Kg)	324
Base and column Material	Precision granite
Operation	Manual
Stage move type	Independently developed precise toothless screw drive

Lens	3Dfamily Continuous zoom lens
Magnification	Optical magnification : 0.7x - 4.5x Image magnification : 39x - 225x

Camera	43Mp 3dfamily Color CCD
Light Source	Top : LED \| Bottom : LED
Optical ruler resolution	0.001mm
Precision(X,Y)	(3±L/200)
Repeatability(X,Y)	0.003mm
Software	OVM Pro
Applicable environment	Power : 110V-220 ±10% 50/60Hz Temperature : 20±5°C
